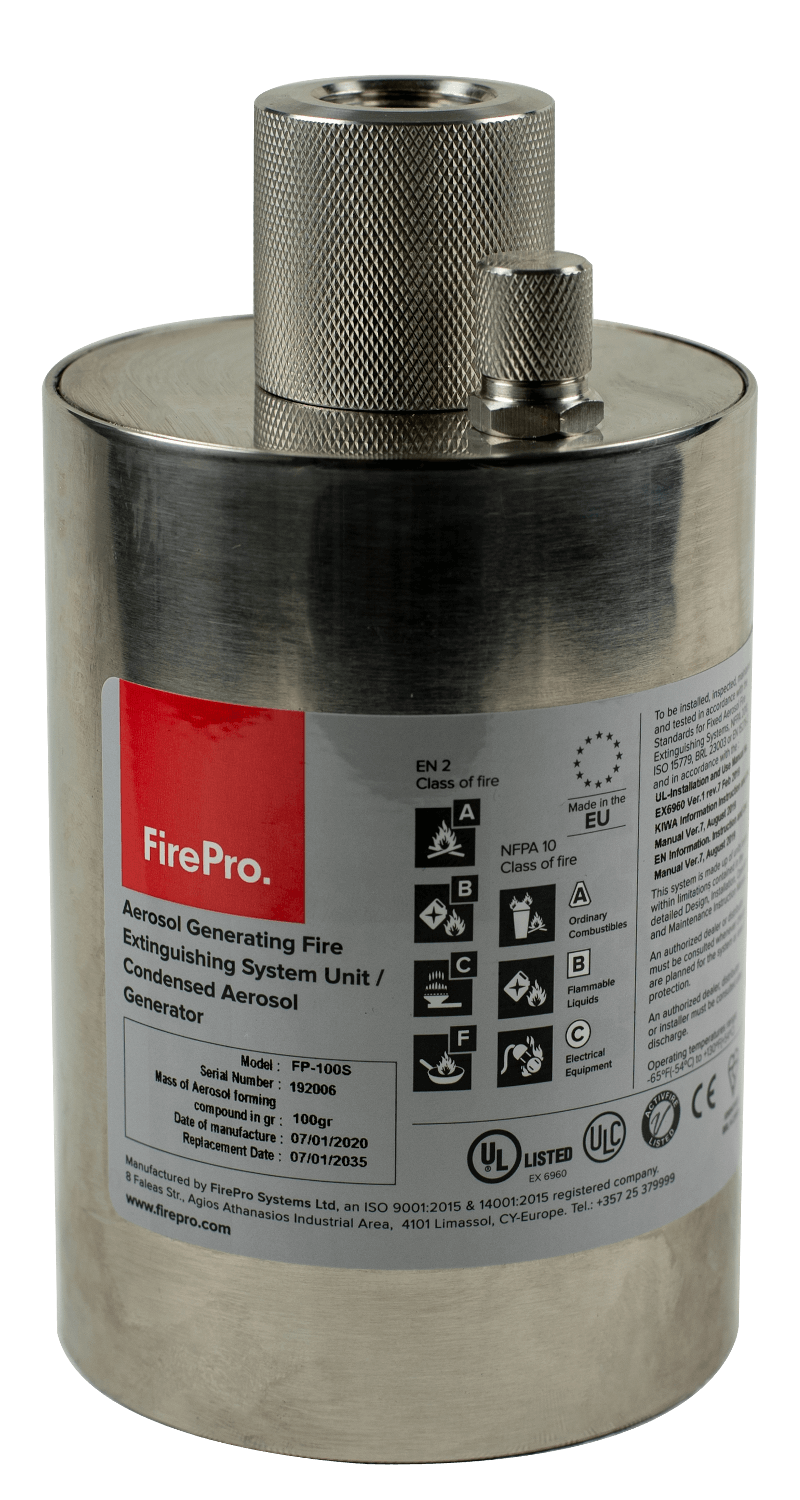

Aerosol Fire Extinguishing Generator
FP-100S
(P/N: 40375)
| Extinguishing agent quantity | 100 g |
| Activation | electrical and thermal (thermal actuator necessary) |
| Operating temperature | -54 °C - +100 °C |
| Fire class | A, B, C and F (currently proven only up to 5 F = extinguishing capacity up to 5 liters of cooking oil/fat) |
| Height | 155 mm |
| Diameter | 84 mm |
| Weight | 1,370 g |
| Discharge time | ca. 10 Seconds |
| Discharge length | ca. 1 m |
| Safety distance (easily flammable parts & creature) | 30 cm |
| Service Life from manufacture | 15 Years |
Approvals and Certificates
Description
The FP-500S is an Aerosol-Fire-Extinguishing-Generator with anelectrical or thermal (thermal actuator necessary) activation, which releases an aerosol extinguishing agent. This will be used for firefighting as a total flooding system for rooms and objects.
• Effective fire fighting on site
• Non-toxic extinguishing agent: AEROSOL
• Period of use: max. 15 years
• Pressureless stainless steel container
• For Fire class: A, B, C and F
• Multiple certified
Matching it :
Mounting Clamp (swivelling)SBS 100/200/300/500
Test-UnitPSDY06-FP
