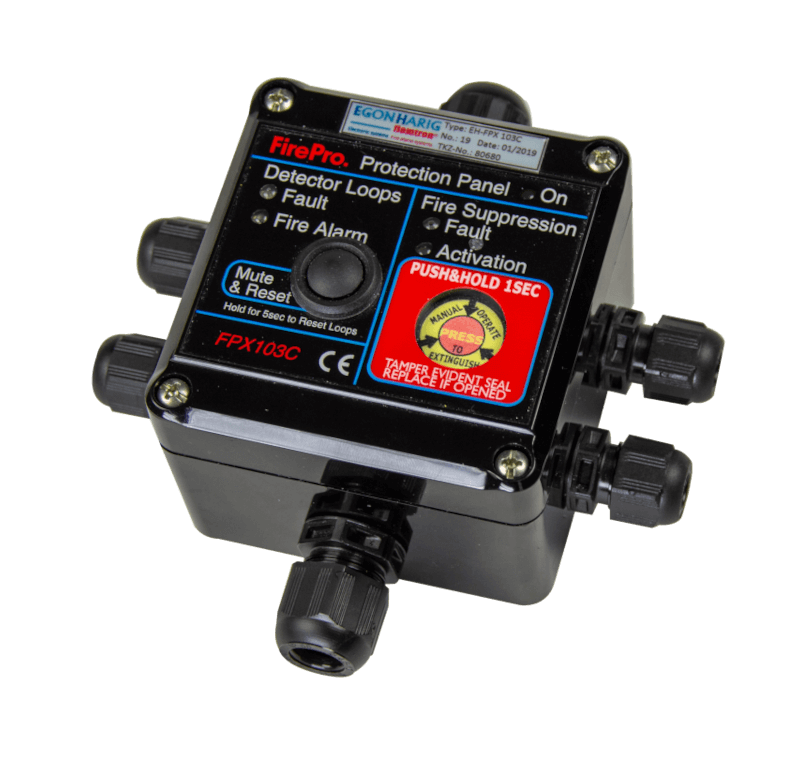

Fire Protection Control Panel
EH-FPX-103C
(P/N: 80680)
| Dimensions (L x W x H) (without cable glands) | 8.2 cm x 8.3 cm x 6 cm |
| Weight | approx. 200 g |
| Protection class | IP 65 |
| Operating voltage | 18 - 30 V DC |
| Number of extinguishing generators | 1 to 4 |
| Signal inputs | 2x NO contact |
| Various connections for e.g. | Fan off; potential-free change-over contact |
Description
Small compact fire control panel especially for maritime use with MCA approval.Two monitored signal inputs are available for detection.
An extinguishing generator connection output is directly available at the EH-FPX-103C. Depending on the operating voltage and distribution box, up to 4 extinguishing generators can be connected to the output.
The operating input voltage is between 18 - 30 V DC.
A manual release button is available directly on the fire control panel for manual release.
Matching it :
Additional accessories is available for this productIsolation SwitchIS1118.2
Fire Detection CableEH-LHDC-...
Sounder with Flash LightCH / 100 AV / SDR / EH
Flashing SounderPA X 1-05 24 DC RD
Maritime Connection Cable1x2
Aerosol Fire Extinguishing GeneratorFP-100S
Aerosol Fire Extinguishing GeneratorFP-200S
Aerosol Fire Extinguishing GeneratorFP-500S
