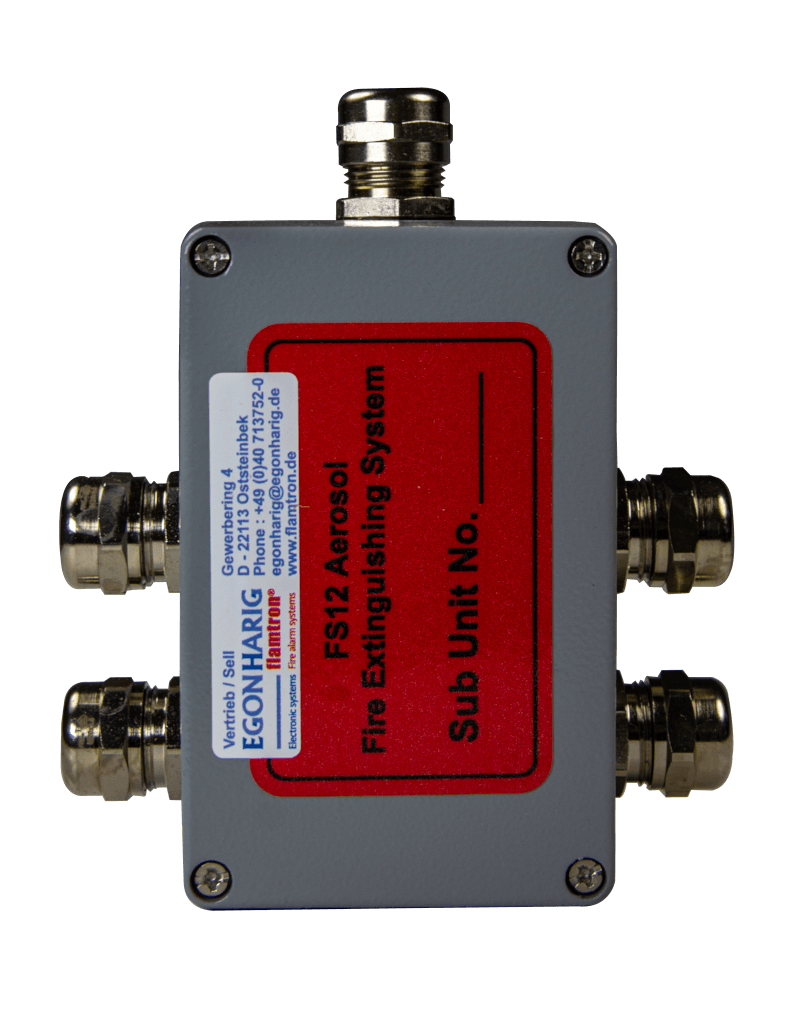

Sub-Station
SUBS-FS12
(P/N: 40418)
| Housing dimensions (L x W x H) (without cable glands) | 80 mm x 125 mm x 57 mm |
| Housing material | metal |
| Weight | approx. 0.6 kg |
| Housing protection class | IP 44 |
| Extinguishing generator connection | 1 |
Approvals and Certificates
Description
The SUBS-FS12 sub-station connects the connected aerosol extinguishing generator via a double loop to the FS12 main marine control panel.The sub-station is self-monitoring and monitors the connected extinguishing generator for wire breakage.
One sub-station is required per extinguishing generator.
Matching it :
Marine Main Central PanelFS12
Maritime Connection Cable2x2
