Duo-LED
EH-SMFE22214
(P/N: 21105)
| Operating voltage | 24 V DC |
| Operating current | 17 mA (red), 13 mA (green) |
| Connection type | common cathode |
| operating temperature | -30°C to +75°C |
| Housing protection | IP67 |
| Diameter | 25mm |
Description

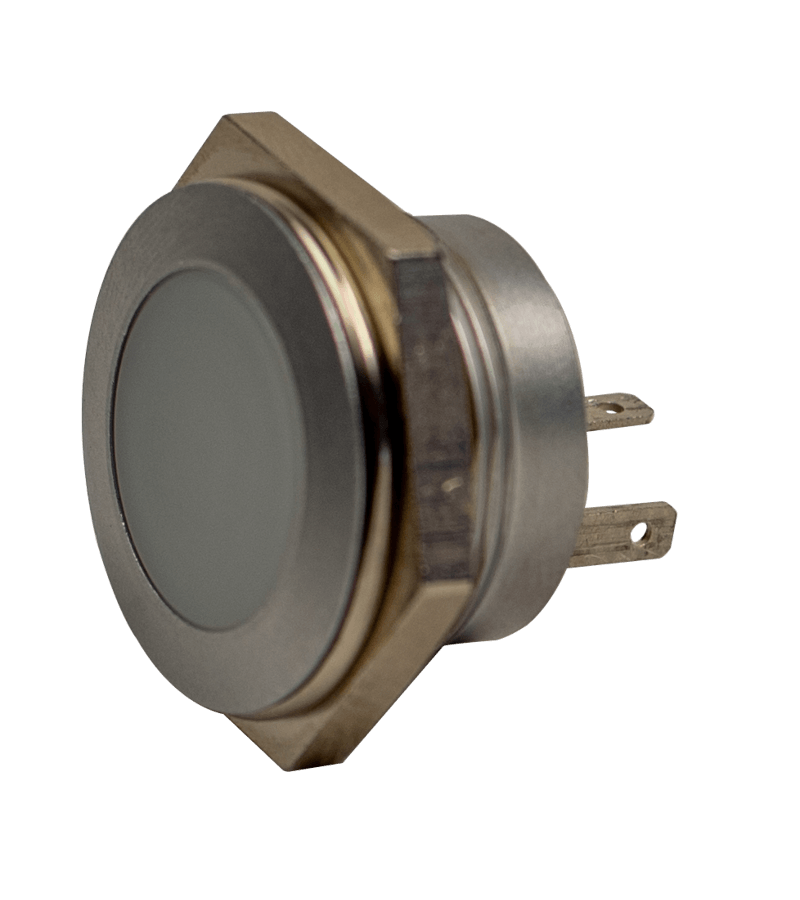

Super flat bicolored LED indicator light with frosted illuminated surface and 160° viewing angle for optimal on/off contrast. The metal housing has 2 flat parts as anti-twist protection. The Duo-LED allows the colors red, green, and yellow to be displayed.Marine
