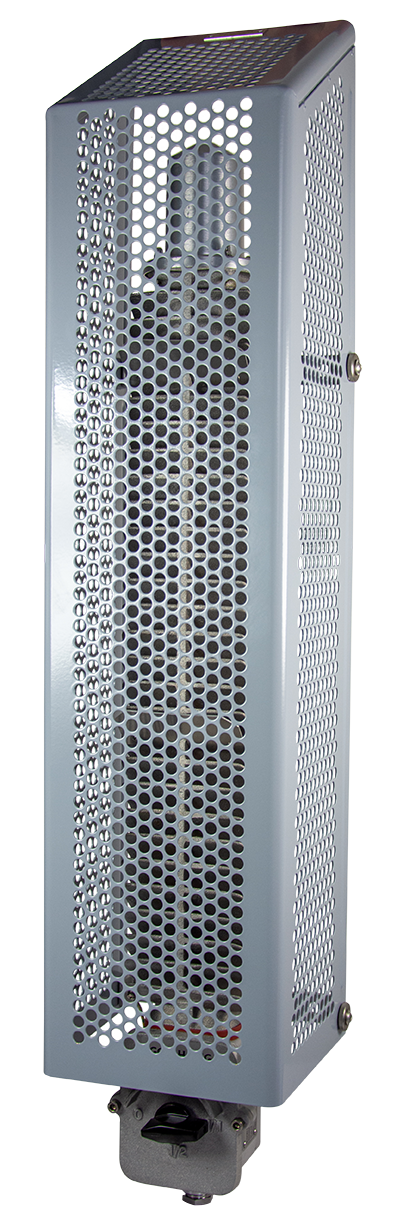

Electrical ship heater
HGL/MA 1000-*

(P/N: 80870 - HGL/MA 1000-A)
(P/N: Other depending on version)

Electrical ship heater HGL/MA 1000-*
Dimensions (max. h x w x d)1010 mm x 200 mm x 180 mm
Weightapprox. 8.5 kg
Wattage1,000 W
Power Supply220 V DC / 440 V AC
Protection Class acc. to DIN 40050IP 55
Cable glandM24 x 1.5 DIN 89280
FinishRAL 7001 silver grey
Ambient temperaturemax. 30 °C
Mounting4x hole 10.5 mm

Special features

The electric marine heaters HGL/MA are a form-fit-function product to the variants of the company IBAK (IBAKmarine) used for decades.

The company EGON HARIG GmbH has acquired the entire production rights of the HGL/MA.
These were adapted for todays standard and new shock calculations were carried out.

Due to the new improved and certified hood, sharp edges are avoided and the handling all day is simplified and safer.

The new improved version has been approved by the Deutsche Bundesmarine.

Description

The electrical ship heater type HGL/MA - naval version - fullfills the technical requirements of the German norm sheet VG 88974.

The heater is available with a built-in on / off or regulator switch.

The heaters are serially equipped with an automatic thermal cut out. This can only be switched on again using tools.
