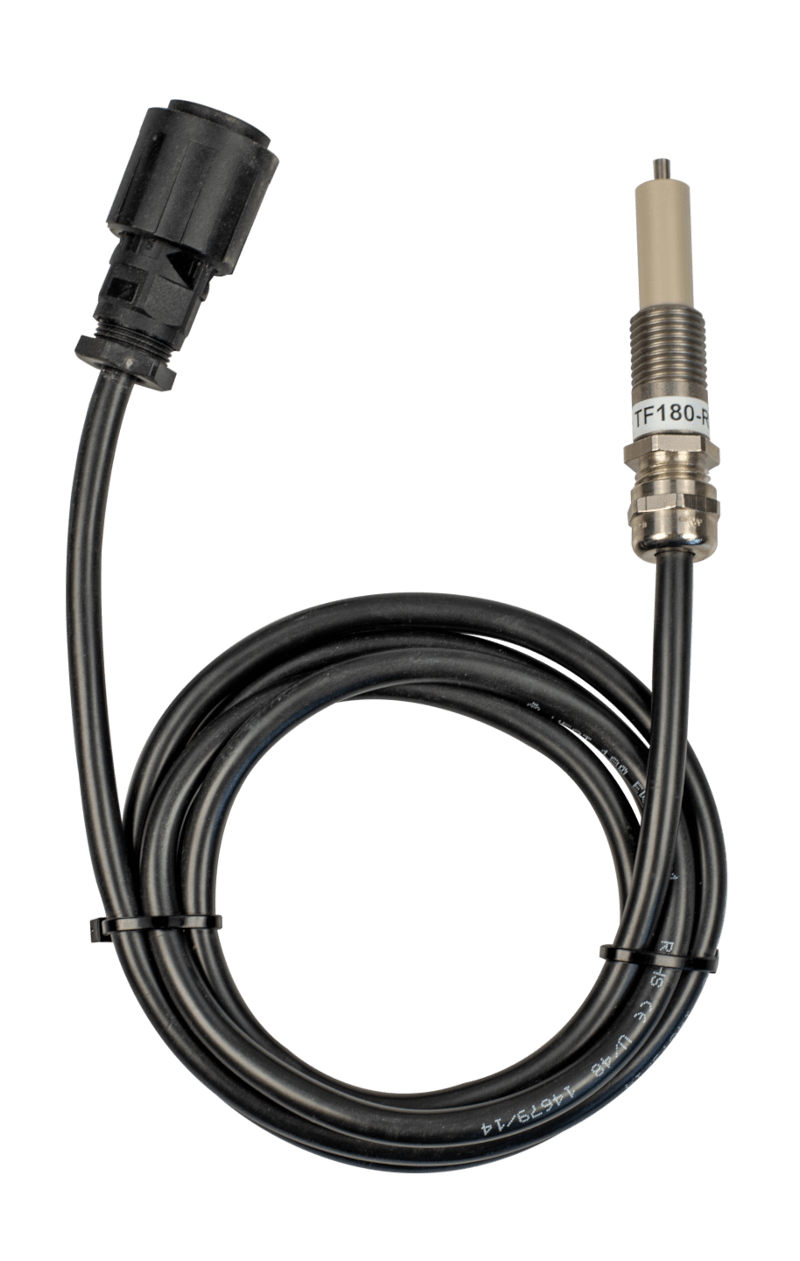

Heat Detector
TF 180-RB
(P/N: 80585)
| Dimensions (LxW) | 77 mm x 25 mm |
| Weight | 180 g |
| Protection type | IP 68 |
| Temperature range | -25°C to 180°C |
| Length of connection cable | 1.5 m |
| Special features | robust design |
Description
Suitable for fire detectionsRobust design
Water- and dustproof
Fast response, because low sensor mass
“Alarm”-set point (variable*) max. 180 °C
* The temperature at which an alarm should be triggered, will be set up fixed in the Fire Detection and Extinguishing Panel or in the Evaluation Unit of the Temperature-Measurement and Extinguishing-Agent-Release System.
Matching it :
HolderHA TF 180
