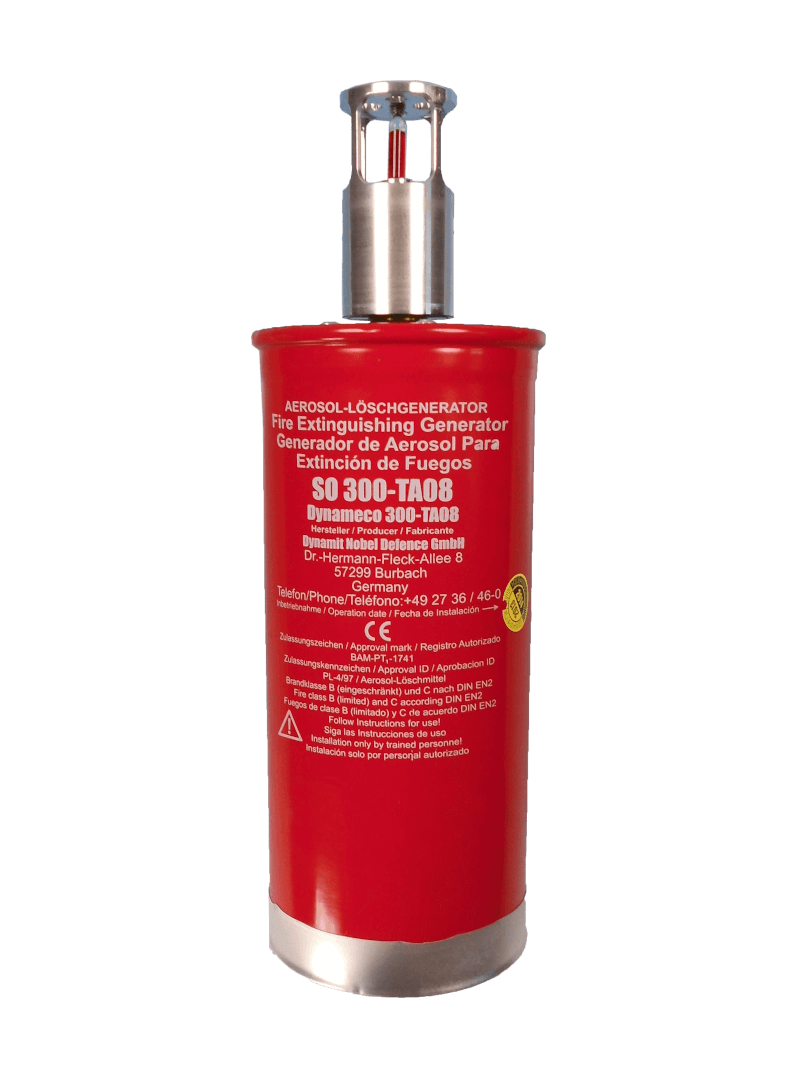

Aerosol Fire Extinguishing Generator
Dynameco 300-TA08

(P/N: 40205)

Aerosol Fire Extinguishing Generator Dynameco 300-TA08
Heigth (without End-Position Switch)259 mm
Heigth (with End-Position Switch)approx. 349 mm
Diametermax. 88 mm
Weightapprox. 1.41 kg
Operating temperatures-40 °C to see datasheet
Volume to be protectedapprox. 3 m³
Duration of AEROSOL generationmax. 8 s
Start of effectimmediately after the ignition
Period of use from installation5 years

Description

AEROSOL Fire Extinguishing Generator with thermal activator

• Effective fire fighting on site
• Non-toxic extinguishing agent: AEROSOL
• Period of use: max. 5 years

These fire extinguishing generators produce after an thermal activation an environmentally friendly, non-toxic AEROSOL. The energy of the fire will be reduced. And by the binding of free radicals, the flame will be extinguished. During this process, the environment is not deprived of oxygen.

This product class is approved for fire protection classes A, B, F (limited) and C.

These fire extinguishing generators are particularly suitable for fighting of incipient fires.
They are used for room-based and object-based fire extinguishing.

For the release of these fire extinguishing generators, a central unit for fire detection and fire extinguishing is not necessary. Current-free system.
This version includes fire detection and fire extinguishing in one system.
Available for activation temperatures: 57°C, 68°C, 79°C or 93°C. Other activation temperatures on request.
Expandable with an optional electrical feedback-element.
