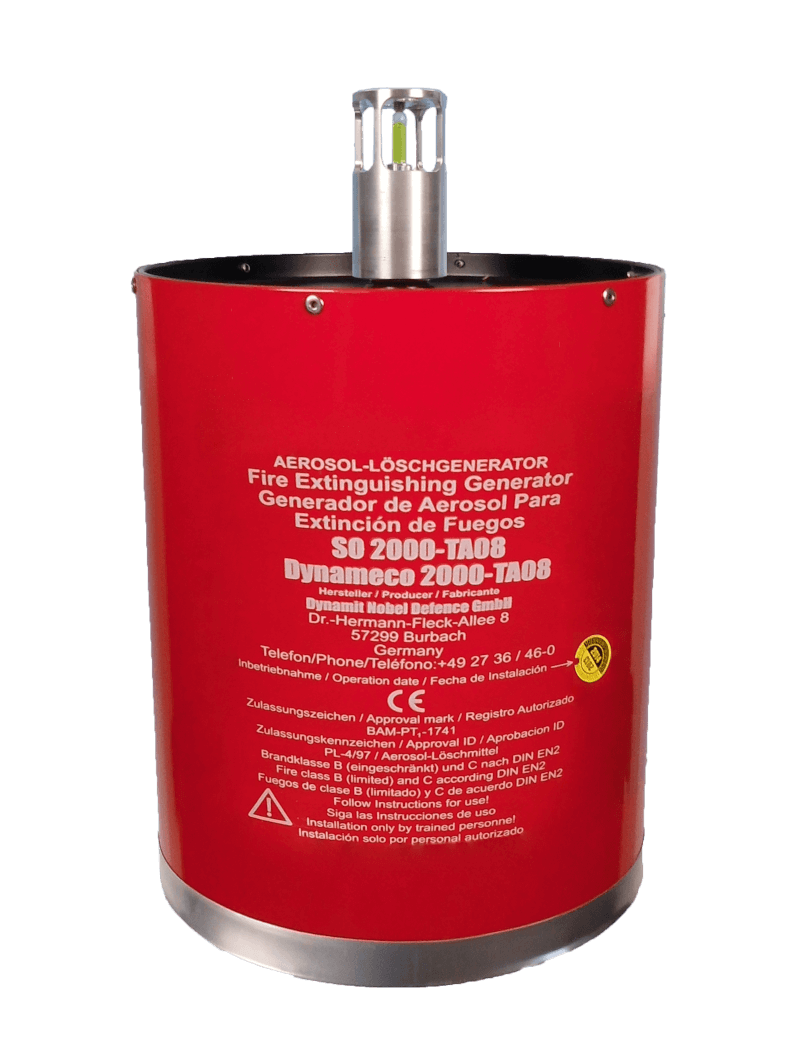

Aerosol Fire Extinguishing Generator
Dynameco 2000-TA08
(P/N: 40206)
| Heigth (without End-Position Switch) | 311 mm |
| Heigth (with End-Position Switch) | approx. 401 mm |
| Width | max. 206 mm |
| Weight | approx. 8.35 kg |
| Operating temperatures | -40 °C to see datasheet |
| Volume to be protected | approx. 20 m³ |
| Duration of AEROSOL generation | max. 15 s |
| Start of effect | immediately after the ignition |
| Period of use from installation | 5 years |
Description
AEROSOL Fire Extinguishing Generator with thermal activator• Effective fire fighting on site
• Non-toxic extinguishing agent: AEROSOL
• Period of use: max. 5 years
These fire extinguishing generators produce after an thermal activation an environmentally friendly, non-toxic AEROSOL. The energy of the fire will be reduced. And by the binding of free radicals, the flame will be extinguished. During this process, the environment is not deprived of oxygen.
This product class is approved for fire protection classes A, B, F (limited) and C.
These fire extinguishing generators are particularly suitable for fighting of incipient fires.
They are used for room-based and object-based fire extinguishing.
For the release of these fire extinguishing generators, a central unit for fire detection and fire extinguishing is not necessary. Current-free system.
This version includes fire detection and fire extinguishing in one system.
Available for activation temperatures: 57°C, 68°C, 79°C or 93°C. Other activation temperatures on request.
Expandable with an optional electrical feedback-element.
Matching it :
Mounting ClampDynameco BS 2000
End-Position SwitchDynameco TA08-ES
End-Position SwitchDynameco TA08-ES-1
Release BlockerDynameco TA08-TS
Swivelling and Tilt JointDynameco SNG 2000
HolderHA 2000
