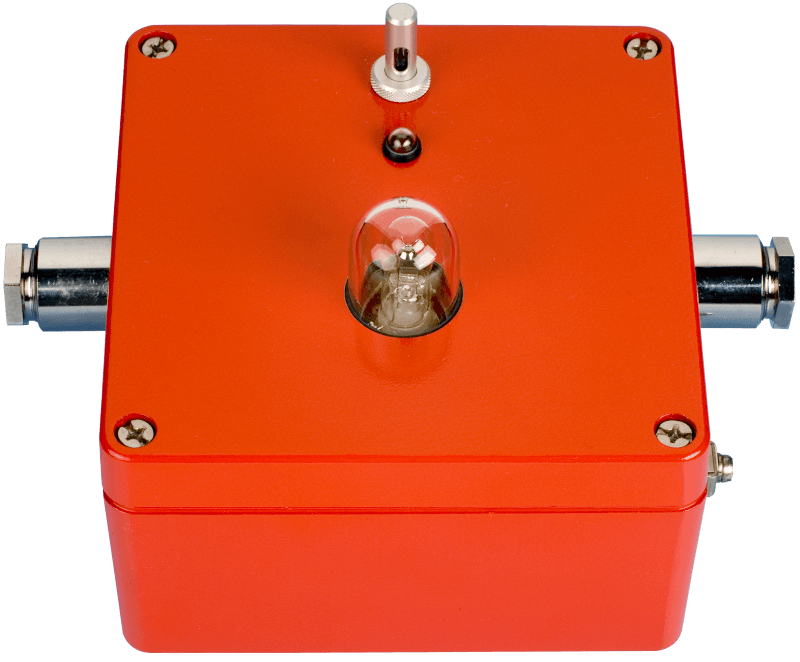

UV-Flame Detector
FL 80/1...- J
(P/N: 80595)
| Dimensions (l x w x h) | 160 mm x 160 mm x 125 mm |
| Weight | 2 kg |
| Protection type | IP 54 |
| Angle of visibility | 180° |
| Temperature range | -20 °C to 70 °C |
| Operating voltage | 24 V DC |
| Current consumption | 30 mA to 90 mA |
Description
The UV-Flame Detector reacts only upon the short wave part of the UV range (UV C 200 nm to 280 nm, where by the highest sensibility is between 210 +/ 10 nm) of an optical radiation of an open flame. Thus, an influence generally caused by embers and bulbs and at respective sensibility adjustment against solar radiation, special fluorescent lamps and discharge sparks will be avoided.Generating of the voltage for the detector tube will be continuously monitored. In a case of failure this will be signaled.
Automatic test with the integrated UV-Tester.
Matching it :
UV-TesterUVG 93
Swivel MountingSK 095
UV-TesterFG 8401
